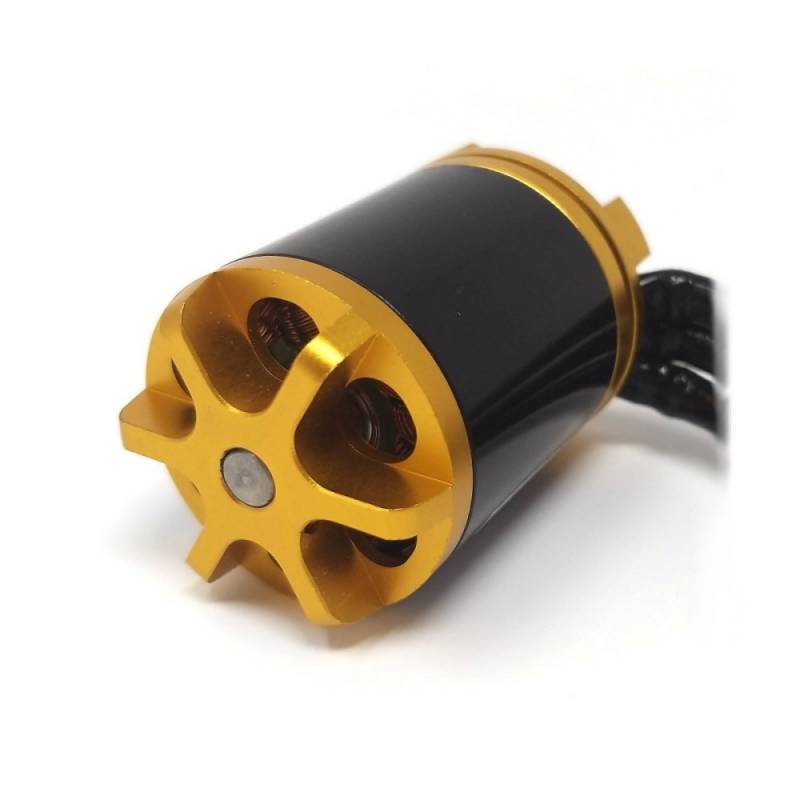

JP Hobby MT-3055-4S 30mm 3300Kv Motor

JP Hobby MT-3055-4S 30mm 3300Kv Motor
Price: $0.00

JP Hobby MT-3055-4S 30mm 3300Kv Motor


This JP Hobby 12 poles outrunner motor can be used as a replacement for the JP Hobby 70mm EDF 4S unit for or for any other application.


Model: MT-3055-4S

Max Amps: 90A

Max voltage: 14.8v

Max Power: 2832W

KV(RPM/Volt): 3300

Motor Poles: 12

Resistance: na

No-load Current (15v): na

Diameter×Length (mm): Φ30x55

Dynamic Balance Weight: 0.01mg

Mounting hole depth: nc

Length of extend Shaft: na

Shaft Diameter (mm): Φ5.0

Weight: 116g

Warning: Operating the motor outside of the specifications listed above can either damage the motor, battery or esc. It is important that these components are set up properly. Failure to do so can void the warranty. It is strongly encouraged to use a Watt Meter to test the watt and amp performance when setting up a new system. If the output is above the factory recommended specs, then it needs to be adjusted by the esc. The timing and throttle settings on the esc can help to set the appropriate levels.

Warning: Screws that are too long can short out the windings resulting in a cooked motor, this is not covered by warranty
