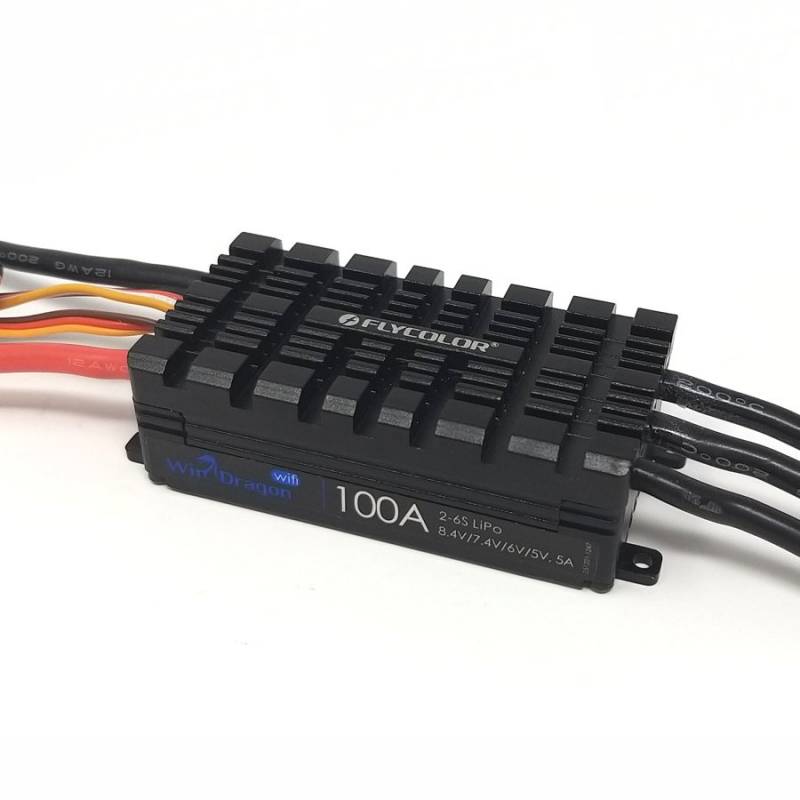

JP Hobby WinDragon Wifi 100A ESC 2-6S (UBEC 5A)

Products > Controllers (ESC) > JP Hobby WinDragon Wifi 100A ESC 2-6S (UBEC 5A)

JP Hobby WinDragon Wifi 100A ESC 2-6S (UBEC 5A)

The JP Hobby 100 Amp Brushless Electronic Speed Controller is a High Power 6S capable system for RC Airplanes and helicopters. Its "Reverse" function allows you to brake your jet during landing (the EDF will turn upside down and blow in the opposite direction)

JP Hobby WinDragon Wifi 100A ESC 2-6S (UBEC 5A)

The JP Hobby 100 Amp Brushless Electronic Speed Controller is a High Power 6S capable system for RC Airplanes and helicopters.  Its "Reverse" function allows you to brake your jet during landing (the EDF will turn upside down and blow in the opposite direction).

Features

Item: 2-6S Lipo brushless aircraft ESC

Use powerful & high performance microprocessor

Unique circuit design, strong anti-interference

Start mode can be set. throttle response fast, and it has a very smooth speed control linearity. Compatible with fixed wing aircraft and helicopters

Multiple protection features:

Input voltage abnormal protection

Low-voltage cut-off protection

Over-heat protection

Throttle signal loss protection

Power reduction protection

High power safety performance: when power up the motor will not start immediately wherever the throttle stick is

Beeping alarm can indicate working condition

Cycle programming menu for easy operation. Compatible with all kinds of remote controllers

Supports programming and detection of real-time data at close range via mobile phone APP (extra Flycolor Wi-Fi trans needed)

Supports programming via programming card (extra Flycolor programming card needed)

Active Switch Continued Flow (ASCF) technology, higher efficiency, reduce heat generation massively

Reverse function: supports to reverse the motor retation during the flight to decelerate (WinDragon wifi 80-130A adaptable)

Specifications

Continous Current: 100A

Burst Current: 120A

Battery: 2-6S Lipo

Programmable: Done by Transmitter

Brake

Battery type

Cutoff voltage

Timing

Sartup Mode

Governor Mode

PWM Frequency

BEC Voltage

Coltage cutoff option

Battery cells

Motor Rotation

Active Switch Continued Flow

REverse Function

Restore default settings

Exit program mode

Strong BEC Output- 5-6V

Size: 39.5mm x 82.5mm x 23.5mm

Weight: 125g
