JP Hobby Electric Retract ER-005 5mm (6kg/Low/Inside)

Electric Main Retract ER-005 5mm
> Model Weight: until 6kg (7-8kg possible)
> Struts diameter: 10mm - Pin Diameter Size: 5mm
> Angle: 90 degrees
> Rotation direction: Inside (jack side)
> Mounting: Low

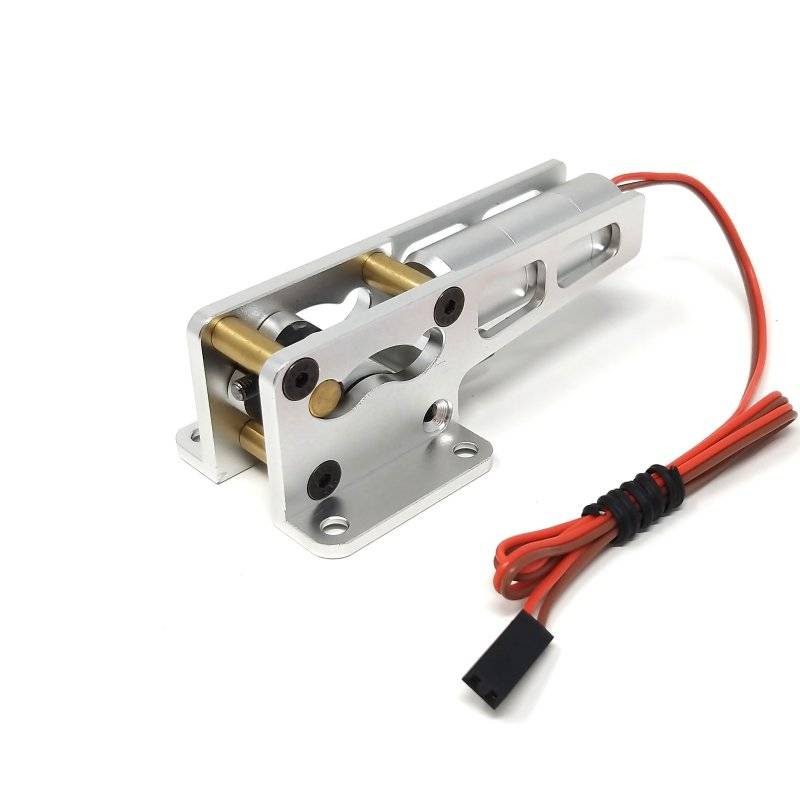

JP Hobby ER-005 5mm electric main retract for 10mm oleo struts for models up to 6kg (Mounting position low and jack side rotation)

Electric 100% CNC aluminium main retract for planes up to 6kg for JP Hobby oleo struts ER-005 or equivalent with a 5mm diameter in the upper part. 90% inside rotation angle (jack side) and mounting position low.


Important: A JP Hobby sequencer is required to control the retract. JP Hobby sequencers allow to control retracts and gear doors servos.

Note: These Allow retracts are provided for the oleo strut ER-005 or equivalent with a 5mm diameter in the upper part.

Specifications

Material: Aluminium

Struts diameter: 10mm

Pin Diameter Size: 5mm

Equipped with a trunion block ref. JPH-TRU ER-005-5mm(I)

For plane: up to 6 kg (possible 7-8kg)

Technical Specifications

Retract weight: 63g

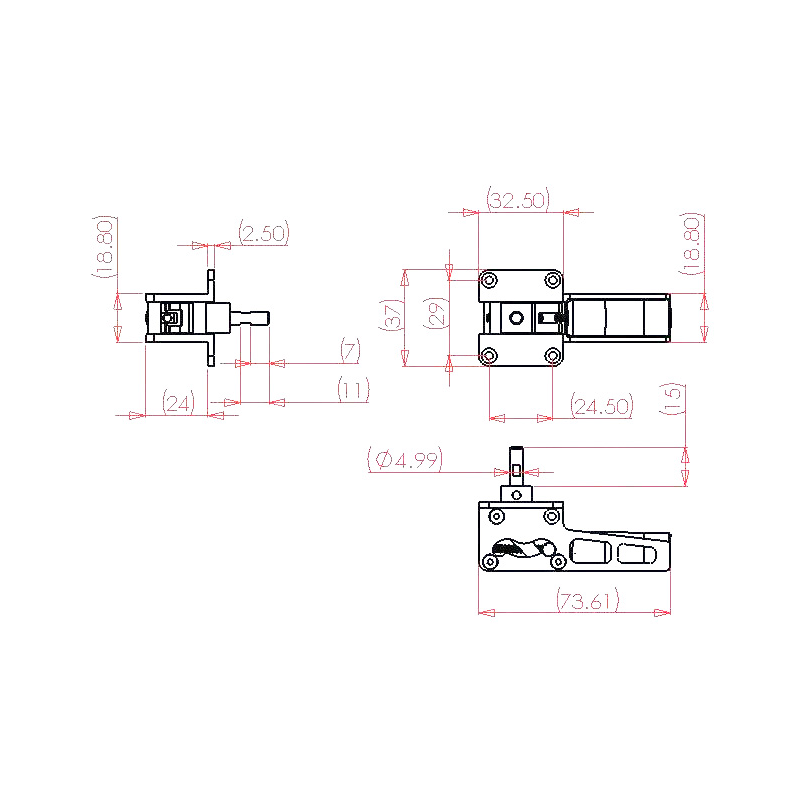

Retract sizes: 26mm x 73mm x 18mm

Retract mounting plate sizes: 33mm x 37mm

Length with motor: 74mm

Working Voltage:  5-6.4V

Speed: 5.2 sec (5v) - 4.3 sec (6v)

Contents

1x Main Retract JP Hobby ER-005 5mm unit (6kg/Low/Inside)

Requires

JP Hobby sequencer (Please pay attention that only JP Hobby sequencers are qualify to work in accordance of the JP Hobby products).
