50mm/4mm Brake Wheels

Products > Wheels & brakes > 50mm/4mm Brake Wheels

50mm/4mm Brake Wheels

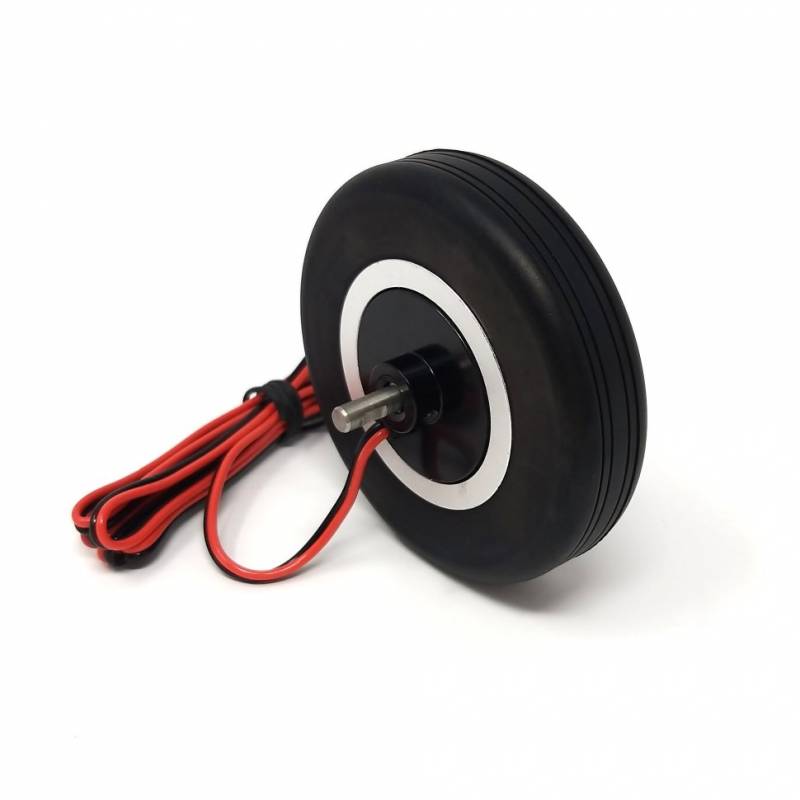

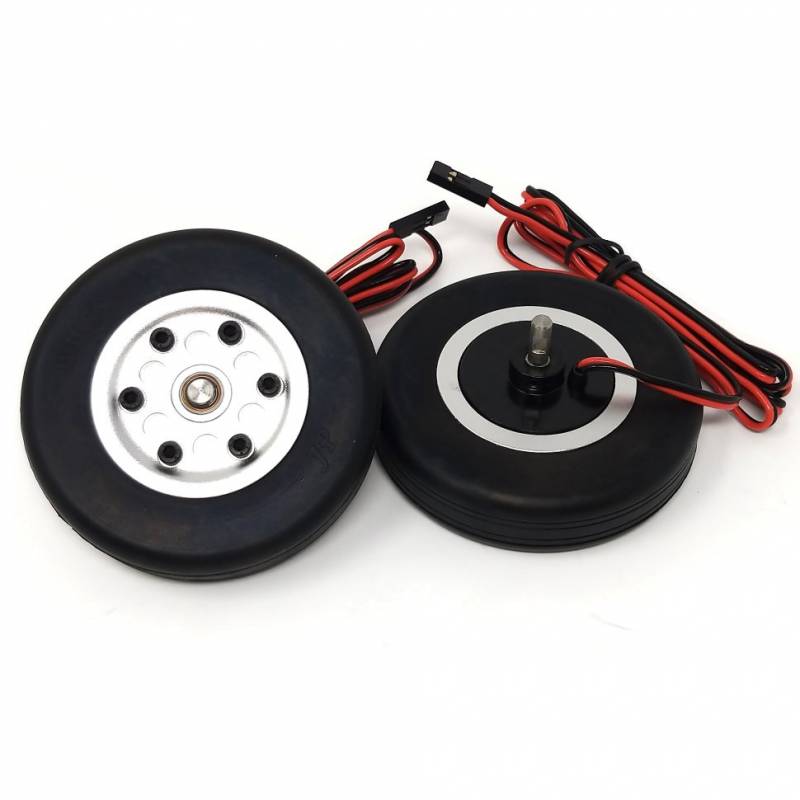

JP Hobby Electric Brake with 2 50/16mm Wheels (4mm axle)

JP Hobby Electric Brake with 2x 50/16mm Wheels and Controller (4mm axle)

You won't believe the quality of these units!

The JP Hobby Electromagnetic Control Aircraft Braking System is the easiest to use and most reliable aircraft braking system available. It replaces the old style pneumatic and servo applied remote control braking systems. This design allows for easier installation and better control of braking. High grade aluminum construction with ball bearing wheels and replaceable hollow rubber tires.


Operates off of the flight battery or a separate 7.2V-30V battery.

Auto shut down after 1 minute of inactivity to reduce battery consumption

Signal Input: Connects directly to receiver to operate.


Wheel Diameter: 51.3mm/ 2 inch

Tyre wide: 16mm

Axle Screw Diameter: 4mm

Weight: 6.59oz / 187g  (2 wheels and control box)

Wires length: 300mm

Included: Two main wheels and a brake controller.


Two main wheels 50/16mm

Brake controller V2
